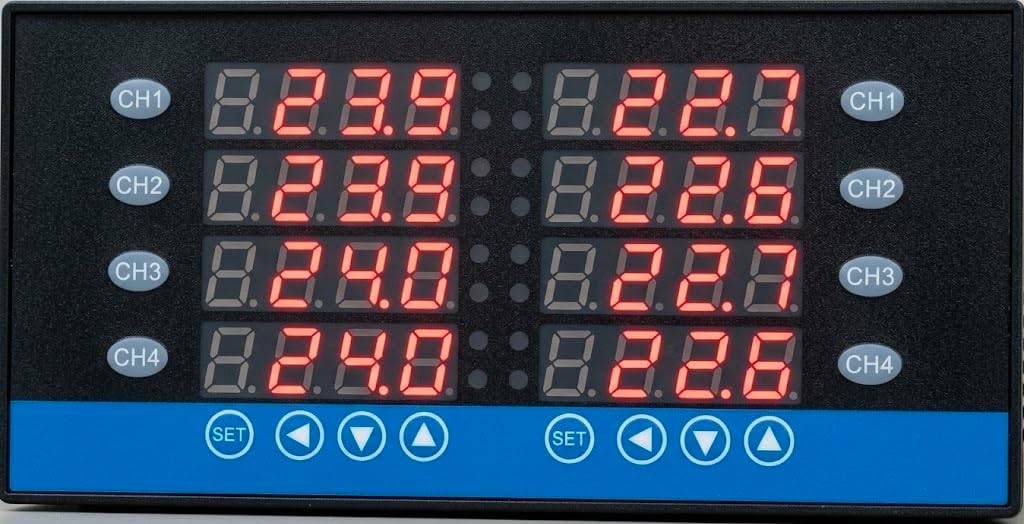

8 Zone Channel Temperature Controller Recorder Data Logger USB RS485 Relay Output 8 thermocouples

USB 8 Channel PID Temperature Controller Recorder Date Logger Relay output & universal type input + USB to RS485 + 8 Thermocouple 0-400C (32-752F). Please consider that you can change the thermocouples for higher temperatures. This 8 channel temperature controller can connect with USB to your computer and you can program, monitor, record any 8 temperatures separately by your computer. All 8 channels are Relay output (the output can connect to buzzer alarm or fan or turn off the machine, or...) and comes with 8 Thermocouples. You can extend the USB wire as long as (150m) you want for connecting to your computer. The software has a lot of functions like, -Write unlimited program and save your program with related name for future use -Monitor and record temperature on Excel or graph by your needed interval time -Easily Change or make you program on your computer and upload your program on your temperature controller in second -Change the software setting for your needed reports. Features & Specifications: AUX output USB RS485 for 8 channel Detective Temperature Range -200 to 1800 °C (depends on input type) software program Be able to save unlimited program on software Input Thermocouple: (K,S,E,J,T) RTD: (Cu50, PT100) Linear Voltage and current Output Relay Output, can connect for any application like buzzer alarm, fan, turn off switch,... Control action Heating , Cooling Response time Less than 0.5S (configurable) Accuracy 0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation) 0.2%FS+0.2C (TC input and internal compensation) Temperature drift Less than 0.01%FS 0C (Typical value is 50ppm/0C) Resolution 10C or 0.10C(automatically change to 10C when the temperature is higher than 999) Display Dual line - four digit - LED dis

• Connect to PC and Monitor, Record, program and control temperature,.Universal Input temperature range -200 to 1800 °C (depends on input type).
• Input: Thermocouple: (K,S,E,J,T) RTD: (Cu50, PT100) Linear Voltage and current. Decimal points: Configurable for all inputs. You can extend the USB wire as long as (150m) you want for connecting to your computer. Record, export to Excel, make a graph and .... by your computer

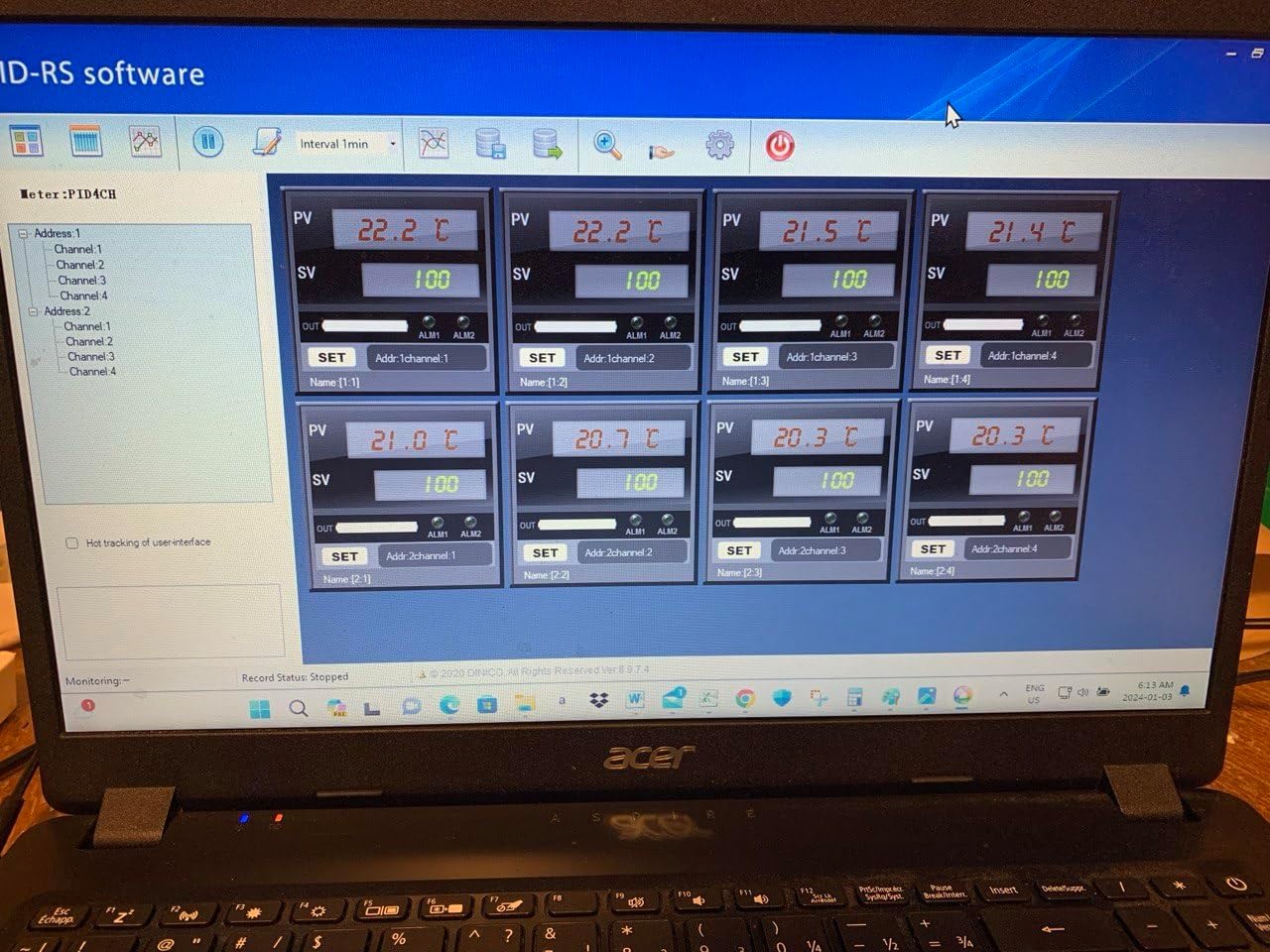

• Write unlimited program and save your program with related name for future use -Monitor and record temperature on Excel or graph by your needed interval time. Power Supply: 90~260VAC , Dimension: 160mm*80mm*103mm panel mount. Output: Relay output
• Display in either Fahrenheit or Celsius temperature unit and Decimal points. For more information please go to our website Thermomart

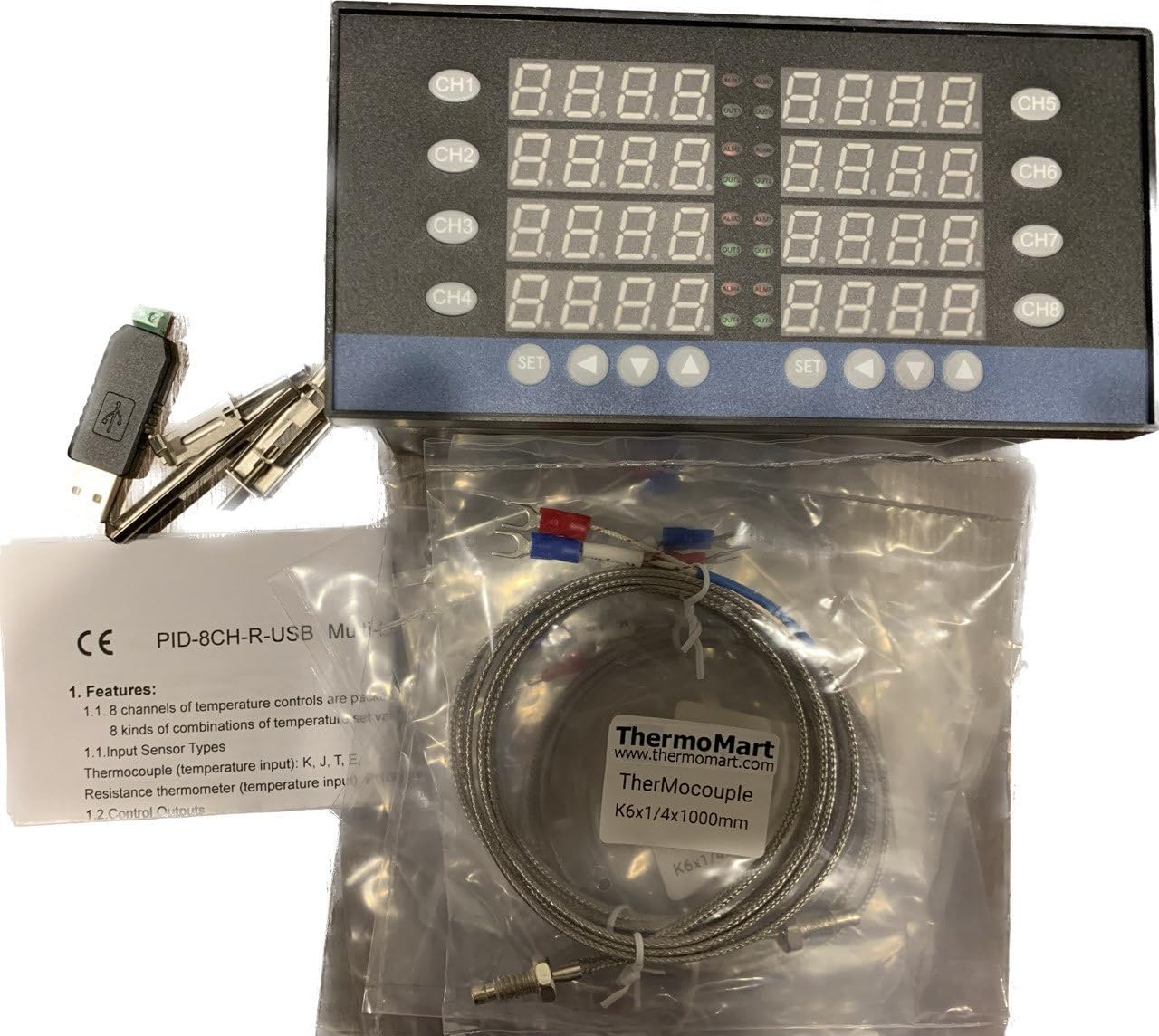

• The item includes: 8 Channel Temperature controller+Free Software+ USB Converter (for connecting temperature controller to your PC)+Manual+ 8 Thermocouple K type 400C
