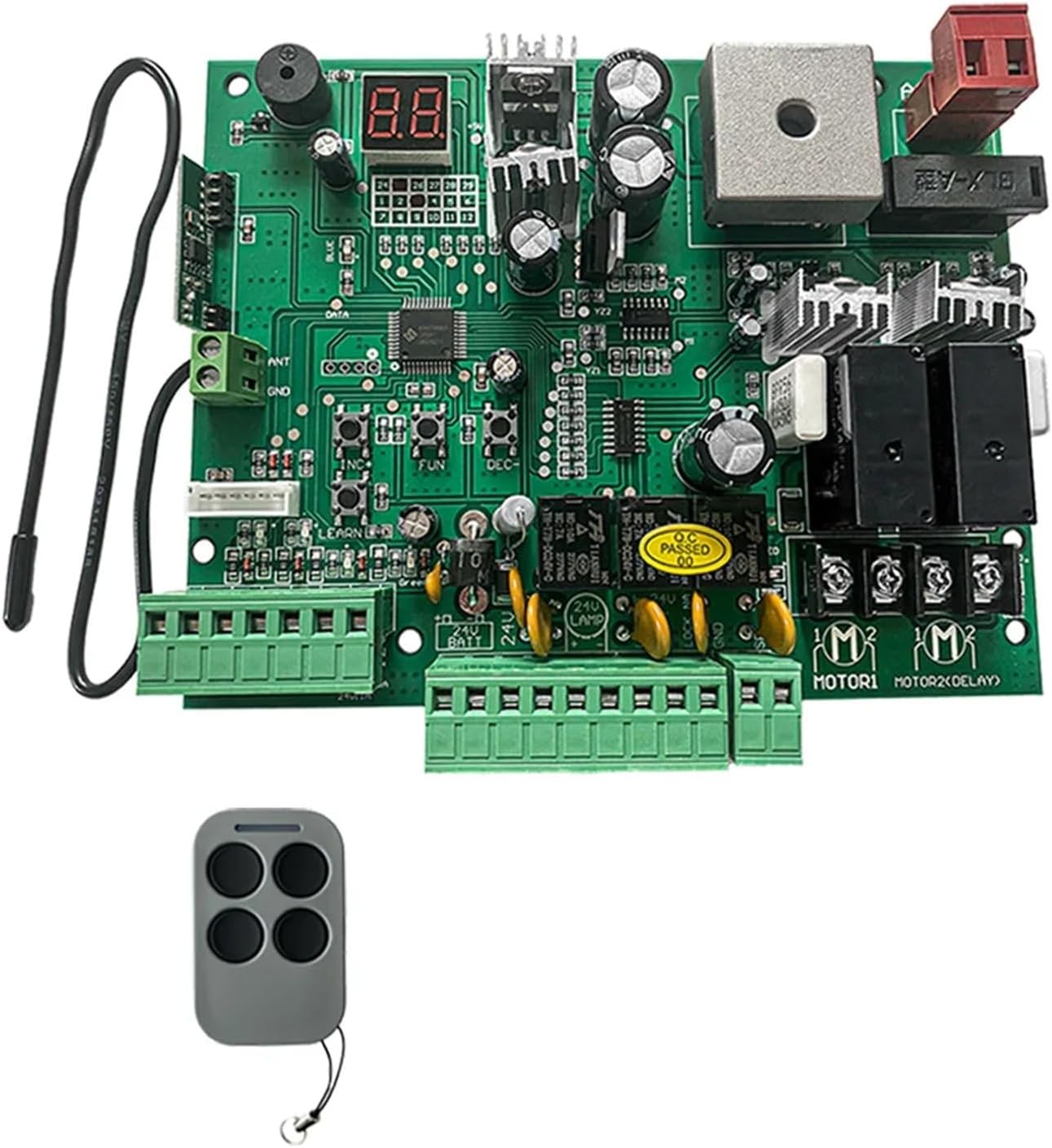

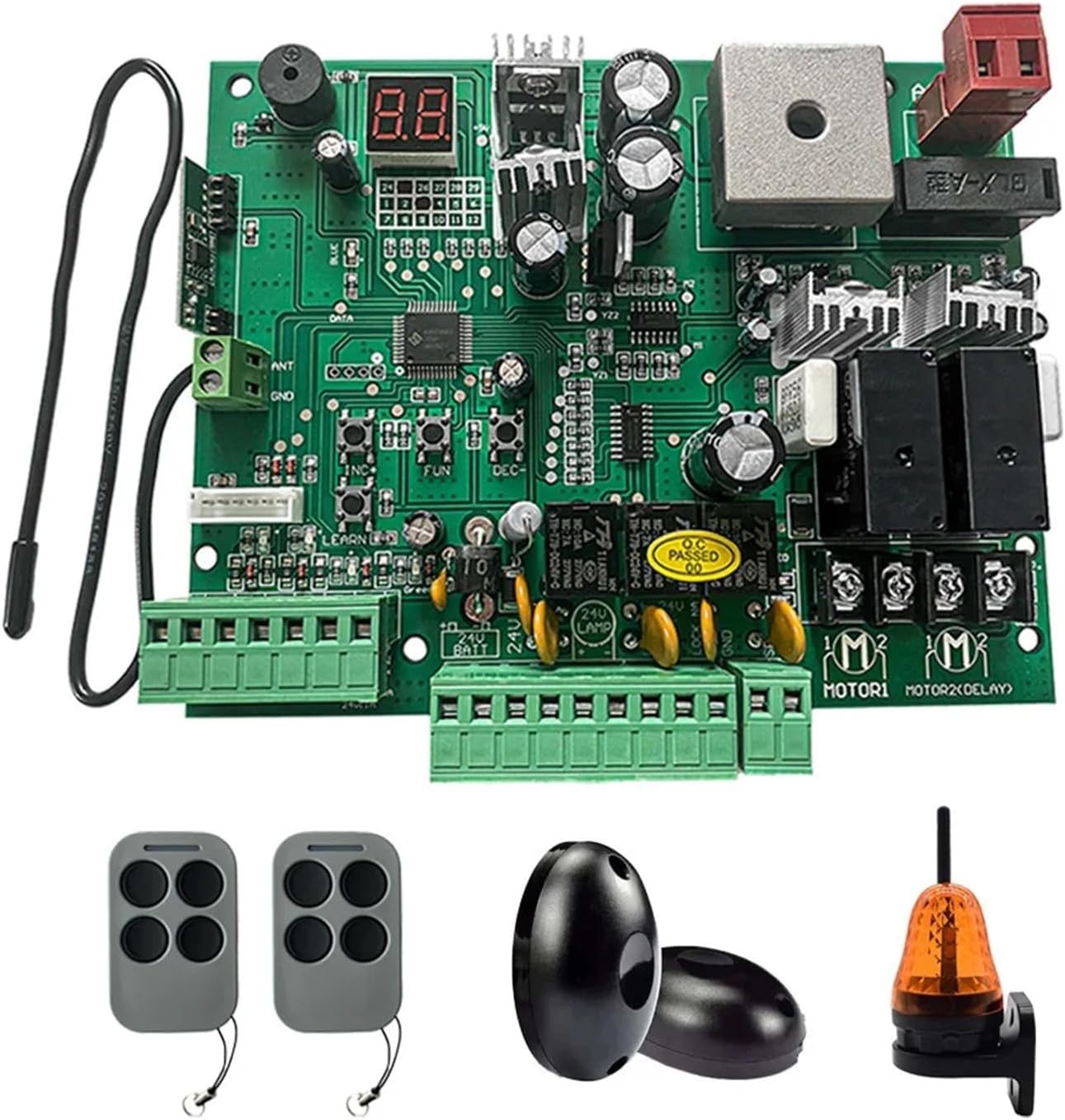

PCB Board，Compatible For Automatic，Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings(2RC 1 Keypad)

==========Encoding method : Rolling codeOrigin : Mainland ChinaCertification : CEV : AC 24VMemory capacity : Up to 120PCS rolling code remote controlsMotor Control Mode : Single / Dual Gate SupportedOperating Temperature : -20 ~ +60Compatibility : Compatible with 24V swing gate motorsMounting Type : PCB mount with screw holesType : Automatic Door Operators,24V control boardAuto-Close Timer : Adjustable 0 to 99 secondsOpening Delay Function : YesWelcome to my little shop.
