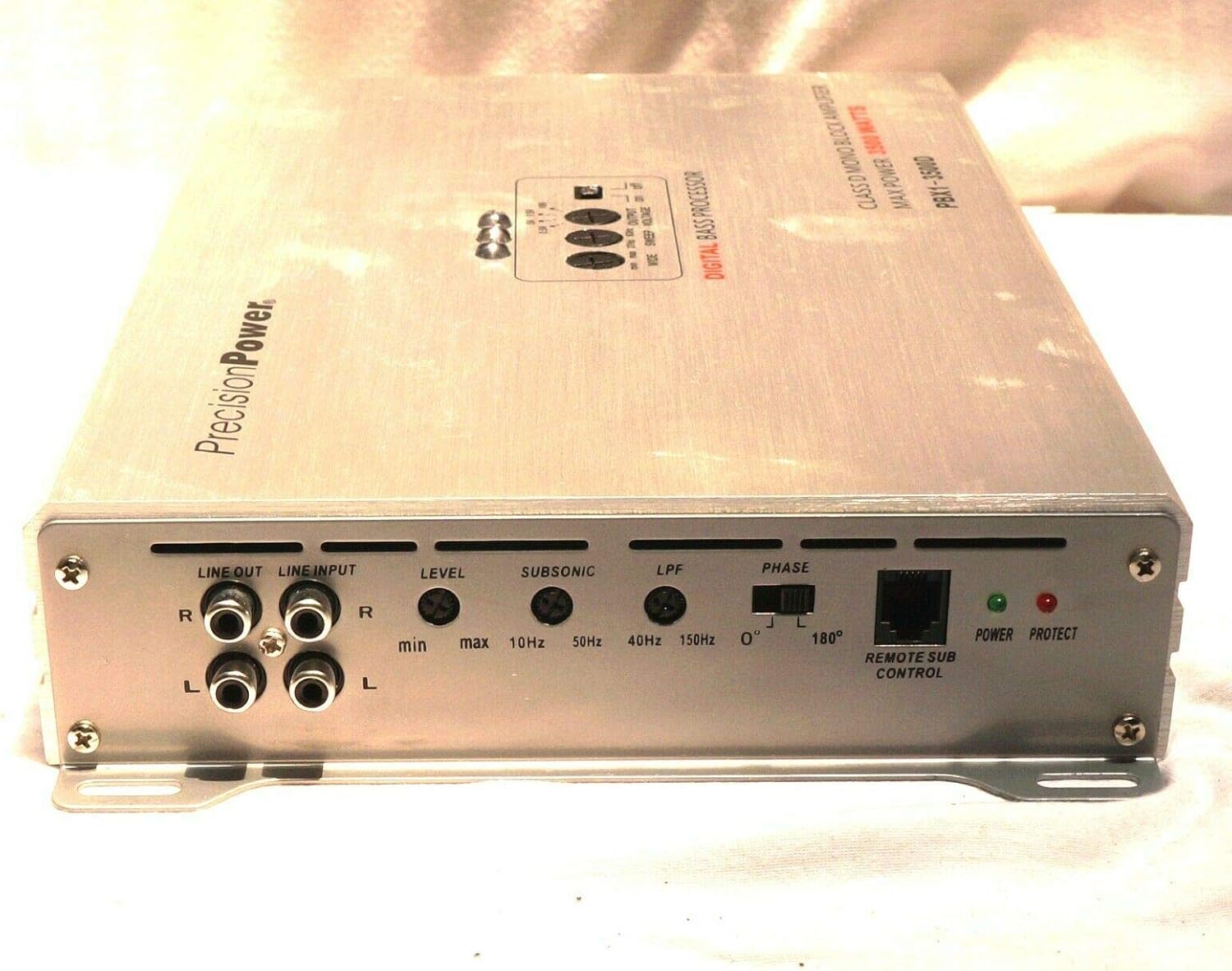

PRECISION POWER PBX1-3500D MONOBLOCK 3500W CAR SUBWOOFERS Amplifier Built in BASS Enhancement Reconstruction & Equalizer

For those who want the most out their car audio system, quality sound processing is a must. After some slight adjustments, your system can sound like it has been tuned by audio professionals. Bass Xtreme amplifiers offer similar sound processing options by including the functions of a Bass Equalizer. Commonly added in-line before subwoofer amplifiers, Bass Equalizer boost lower frequency harmonics that have been compressed or removed from today's music recordings. Dial-in the exact sound you want by tuning the frequency to boost, then, increase the bandwidth range from that frequency to boost the harmonics around it. Unlock the best bass from any system with Bass Xtreme amplifiers. SWEEP selects the frequency boosted by the equalizer. This is the "center frequency", which can be as low as 27Hz, or as high as 63Hz. Choosing this frequency depends on your taste in music. WIDTH increases or decreases the bandwidth range, or "Q," boosting frequencies near the "center frequency." Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlock harmonics all around the center frequency. OUTPUT VOLTAGE is the amount of boost level. Your instincts might be to choose 10V because why not, but hold on a second... more isn't necessarily better. In this case, more can be dangerous, potentially damaging your subwoofers. MAX BASS INDICATOR lights above the equalizer controls is a visual representation of the boost level. Bright, continuous illumination indicates maximum bass enhancement levels have been reached. Remember, more isn't necessarily better. 1-OHM MINIMUM IMPEDANCE STABILITY An amplifier impedance stability is its ability to continuously power speaker(s) of no less than the given impedance per channel, without the risk of damage. Subwoofers are available in a variety of voice coil configurations and impedances, so be sure yours will be no less than 1-ohm. LOW LEVEL RCA INPUT & PRE-AMP OUTPUT Connect the low level (pre-amp) audio output of

• 1-Ohm Stable Class D Monoblock Operation Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low Level RCA Input Variable 12dB High, Low, & Subsonic Crossovers
• 12dB Bass Boost Increases Low Octave Harmonics Direct Wire 4ga. Power & 12ga Speaker Terminals Dash Mounted Remote Gain Control Included
• Max Power: 3,500W RMS Power 4Ω: 550 x 1 RMS Power 2Ω: 800 x 1
• Specifications: RMS Power 1Ω:1150 x 1 Remote Gain Control: Included Dimensions: 7.25″ W x 2.5″ H x 14.75″ L
