Pulse Welding Machine, 709AD+ Lithium Battery Spot Welder with Cooling System and Intelligent Welding Function, Lithium Battery Dual Welding Modes Machine (Color : 220v)

Product Description:1. Can directly use the mobile spot welding pen to trigger spot welding2. Compact body shape, with a portable handle, easy to move3. With foot switch, more accurate welding4. Intelligent heat dissipation system, fast and intelligent heat dissipation5. LED digital display, the number of pulses is clear at a glanceWeldment:Voltage: 220V/110V20VPower: 3.2KW (instantaneous)Spot welding current: 50-800ADouble pulse time: 1-10ms (adjustable)Four pulse time: 2-20ms (adjustable)Eight pulse time: 8-80ms (adjustable)Fixed head spot welding range: 0.05-0.35mmSpot welding range of spot welding pen: 0.05-0.2nnBody size: 140*245*200mmProduct weight: 7kgSoldering iron part:Temperature: 150-450CConstant temperature accuracy: 5COutput voltage: 20V DCSoldering iron power: 50WHeating time: 6-8 seconds to 300C70BN mobile pulse spot welding pen:Adjustable pitch: 2-7mmCable length: 580mmCable cross-sectional area: 16mm³Solder pin size: 1.5*7mmPacking list:1 x host1 pedal1 x spot welding pen1 x nickel-plated plate1 battery holder2 fuses1 x Hex wrench1 x Warranty Card1 x User ManualNote:1. Please do not use cables, use power sockets to ensure stable power supply, otherwise it may cause triggering.2. Set the pressure regulator to the correct value to avoid poor welding.3. Please keep the surface of the welding pin clean, and wipe off the scale with sandpaper.If you have any questions during use, please contact us in time!

• 【Battery Spot Welding Machine】: Specially designed for battery welding (18650, 14500 and other lithium batteries, etc.). The sensor triggers the spot welding function. After switching the welding function, the spot welding function can be realized without using the remote control pedal function.

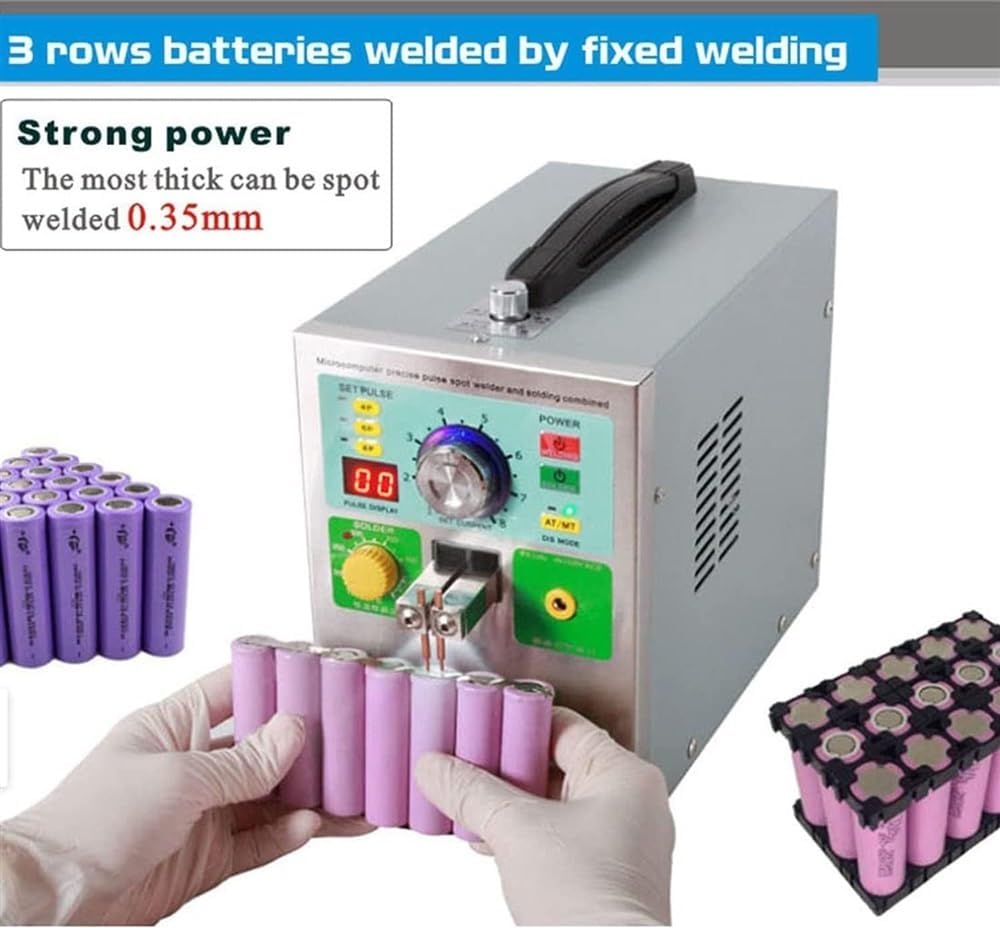

• 【Fixed Welding & Soldering Pen: The fixed welding head can weld 0.05-0.35mm thick nickel-plated nickel strip or 0.05-0.2mm pure nickel-nickel strip. The soldering pen can weld 0.05-0.2mm thick nickel-plated nickel strip or 0.05-0.15mm pure nickel-nickel strip.
• 【Cooling fan system】: Equipped with an intelligent cooling system, a cooling fan is installed at the rear of the spot welding machine. When the internal temperature of the machine reaches the rated temperature, the cooling system function is activated.
• 【Soldering 2 in 1】: It is also equipped with a constant temperature soldering iron function, which can be adjusted between 150-450°C. After the spot welding of the battery pack is completed, the wiring of the battery protection board can be welded. Equipped with dual LED high-brightness lighting devices, precision spot welding can be performed in low-light environments
• 【Constant Temperature Soldering Function】: This wireless soldering machine is also equipped with a constant temperature soldering iron, which can be adjusted between 150-450℃. The soldering temperature can be raised to 300°C within 7/8 seconds, which is very efficient.
