Triple OLED/LCD HAT for Raspberry Pi 5/4B/3B+/3B/Zero W/Zero 2W, Onboard 2inch IPS LCD Main Screen 240x320 SPI Interface and Dual 0.96inch OLED Secondary Screens 128x64 I2C Interface
Product details
| Management number | 216993489 | Release Date | 2026/04/19 | List Price | $9.60 | Model Number | 216993489 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview The OLED/LCD HAT (A) features a 2-inch IPS screen with the built-in ST7789VW driver and support using SPI communication. Also, it boasts a wide viewing angle and supports a 262K color display with 240x320 resolution. Dual 0.96-inch OLED screen with a built-in driver, support using I2C communication, and blue display with 128x64 resolution for displaying key information, status indicator, or mini graphics. In addition, we provide demos for Raspberry Pi (BCM2835 library, WiringPi library, and Python demo), STM32, and Arduino. Features Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards 2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key informations, status indicator messages or small graphics Onboard 4x user-defined keys for extended applications Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.) Online Tutorial/Online Document: n9.cl/9gydy Parameter Power Supply: 3.3V Screen Type:IPS Control Driver: SSD1315(0.96inch), ST7789(2inch) Communication Interface: 4-wire SPI, I2C Resolution: 240(V) x 320(H)RGB, 160(H)RGB x 80(V) Resolution: 30.60(H) x 40.80(V)mm, 21.74mm × 11.18mm Pixel Size: 0.0975 (H) x 0.0975 (V) mm、0.1356 (V) x 0.135 (H) mm Dimensions: 65.00 x 56.00(mm) Package Content OLED/LCD HAT (A) x1 Standoffs pack x1
- This is the Triple OLEDs/LCD HAT for Raspberry Pi. Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
- 2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution
- Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key informations, status indicator messages or small graphics

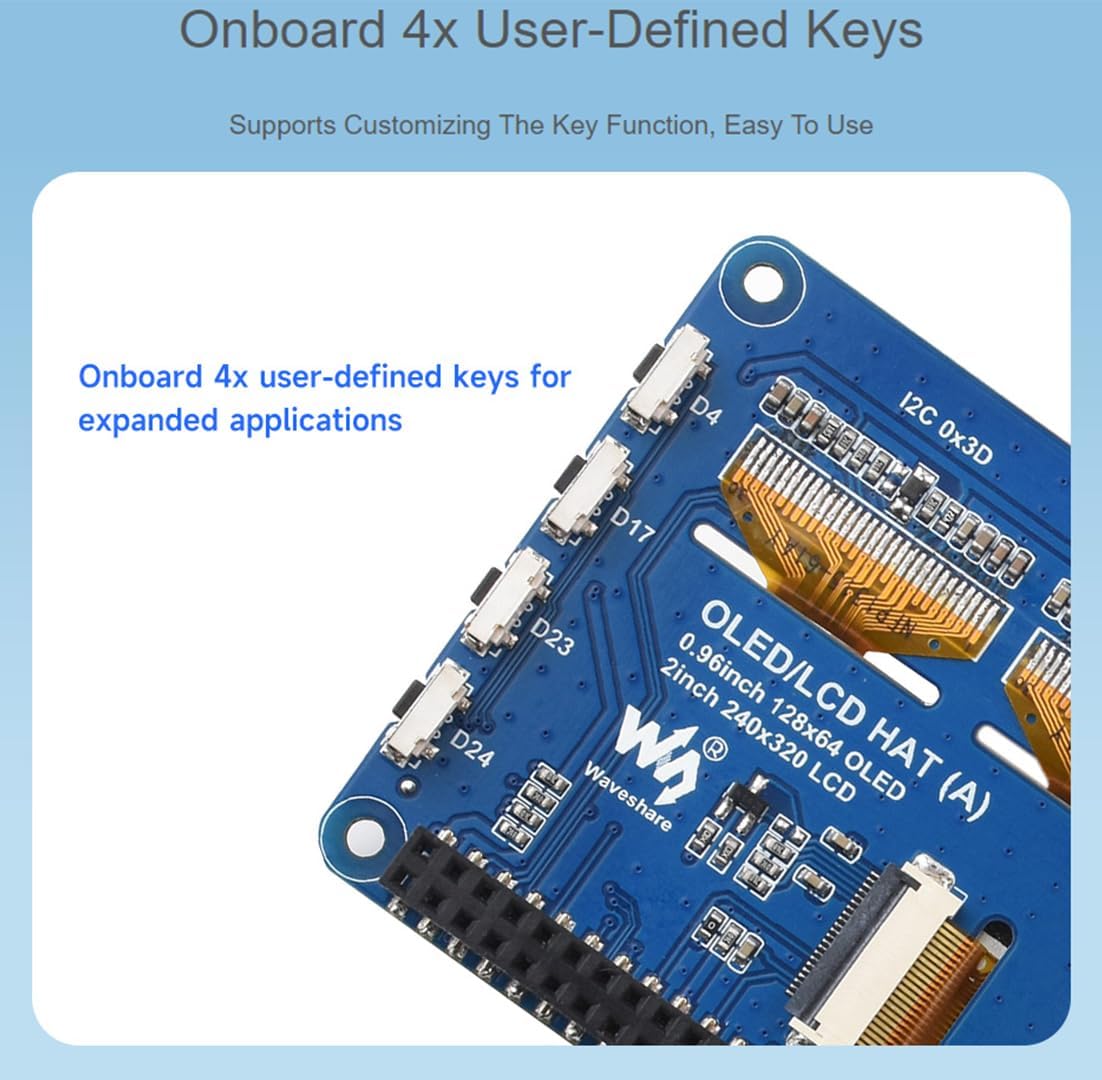

- Onboard 4x user-defined keys for extended applications
- Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.) , pls check the description below.
| Brand | Wonrabai |
|---|---|
| CPU Model | Core i5 |
| Manufacturer | Wonrabai |
| BuiltIn Media | OLED/LCD HAT (A) x1,Standoffs pack x1 |
| Processor Brand | Raspberry Pi |
| Processor Count | 1 |
| Total Usb Ports | 4 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi 5/4B/3B+/3B/Zero W/Zero 2W, STM32, Arduino, VisionFive2 |
| Warranty Description | Small Parts |
| Wireless Compability | Infrared |
| RAM Memory Technology | LPDDR |
| Connectivity Technology | I2C |
